Precipitation sensors

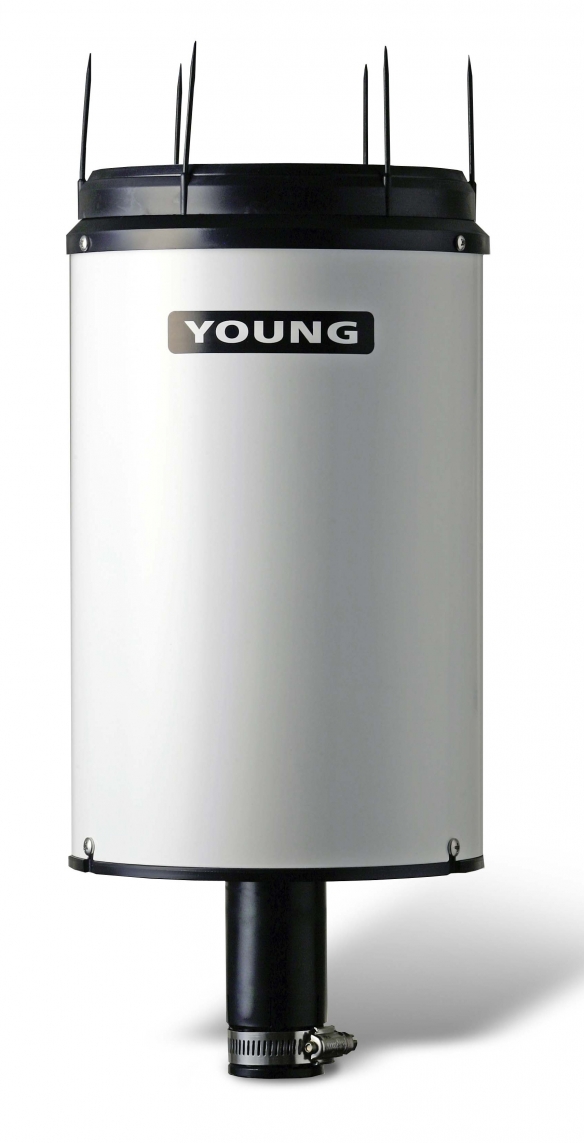

Young Precipitation Sensor With Bird Protection

Manufacturer: Young

Measuring principle: tipping-bucket with bird protection

Order-No: S73100, S73100H — heatable, S73010 — bird protection

WMO-Standards

Catchment area: 200 cm²

Resolution: 0.1 mm

Measuring range: magnetic reed switch

rating 24 VAC/DC, 500 mA

Temperature range: −20…50°C

Size: 180 x 300 mm (390 mm with mounting base)

Heatable
